Introduction to the Workflow Web Service

The Workflow Web Service lets you transparently integrate Workflow with other programs, allowing those programs to pass information (such as the initiator, input/output parameters, and starting entry) to Workflow. This type of integration enhances flexibility and increases efficiency by allowing you to start workflows without opening a Laserfiche interface.

This paper provides information about consuming the Workflow Web Service. It is written for development users tasked with designing integrations.

Creating the Web Service Project

This example uses Visual Studio 2022 and creates a button that starts a workflow instance from a non-Laserfiche program.

To configure the service reference:

Open Visual Studio and create a new project by clicking New Project.
1. Select Visual C# and Windows Forms Application. Name the project and, optionally, specify a location. Click OK.

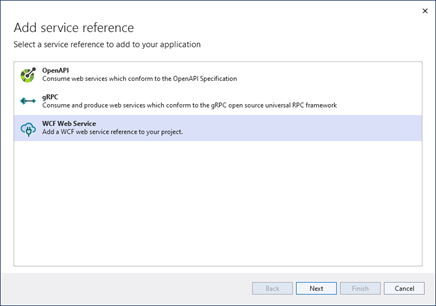

Add a service reference to the project by right-clicking the project name in the Solution Explorer Pane and selecting Add Service Reference. Select the WCF Web Service type and click Next.
Add the Workflow’s Web service by supplying the following default address: http://WorkflowServerName.example.com/workflow/api/RestWorkflowAPI.svc
Note: If the Workflow Server you specify is using a port other than the default port 80, input the port number after the Server name: http://WorkflowServerName.example.com:81/workflow/api/RestWorkflowAPI.svc
Note: If the Workflow Server you specify uses a different virtual directory than workflow, input that virtual directory: http://WorkflowServerName.example.com/LFWorkflow/api/RestWorkflowAPI.svc
Important: Any use of a web service is dependent on the firewall and/or network security set in place by your company IT department. If the network does not allow access to the web service, you may encounter an error message like “The HTTP request is unauthorized with client authentication scheme 'Anonymous'. The authentication header received from the server was 'Negotiate,NTLM'.” Please consult with your IT department for connectivity issues.

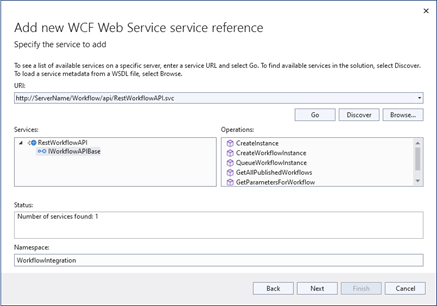

Click Go. Once the service downloads, select the RestWorkflowAPI service. Name the service: WorkflowService
Click OK.

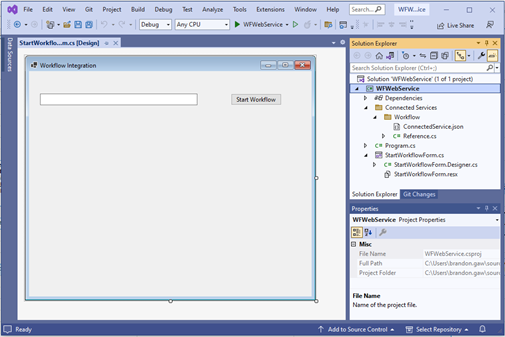

Create your user interface.
Double-click on the button object in the Design Pane to automatically populate its code.
Configure the code: (See the sample code.)
1. Add the project name and the namespace you gave the service to the using statements.
  using System.Text;
  using System.Windows.Forms;
  using WorkflowWebService.WorkflowService;
2. Inside ButtonNameButton_Click, add:
  using (WorkflowAPIBaseClient WorkflowService = new WorkflowAPIBaseClient())
  {
  //Access the Workflow Web Service here.
  }
3. Inside WorkflowService, create an InstanceCreationData object, and configure it. Then, use an operation, like CreateWorkflowInstance, to start a workflow. See the example code and available objects for more details.
  Note: The InstanceCreationData object cannot be null.

Sample Code

The following example assumes you followed the basic steps outlined in the first section of this paper. The example code applies to the example interface.

See a list of available instance creation data statements in the Available Objects section.

Key: The project name is “WorkflowWebService,” the service reference is “WorkflowService,” and the button name is “WorkflowButton.”

		using System;
		using System.Collections.Generic;
		using System.ComponentModel;
		using System.Data;
		using System.Drawing;
		using System.Linq;
		using System.Text;
		using System.Windows.Forms;
		using WorkflowWebService.WorkflowService;

		…
		private void WorkflowButton_Click(object sender, EventArgs e)
		{
		 using(WorkflowAPIBaseClient WorkflowService = new WorkflowAPIBaseClient())
		           {

				//Define the workflow’s starting information (i.e., starting entry and initiator)
				InstanceCreationData creationData = new InstanceCreationData();            creationData.StartingEntry = new InstanceEntryData();
				creationData.Initiator = new InstanceUserData();
				creationData.Initiator.InitiatorDisplayName = "DisplayName";
				creationData.Initiator.InitiatorName = @"DOMAIN\UserName";
					creationData.Initiator.IntiatorSID =
					System.Security.Principal.WindowsIdentity.GetCurrent().Owner.Value;
				creationData.InstanceCreationFlags = InstanceCreationFlags.FromUser;

				//Specify the parameters you want to pass to Workflow
				InstanceParameterData parameter1 = new InstanceParameterData();
				parameter1.Name = "ParameterName";
				parameter1.Value = "ParameterValue";
				creationData.ParameterCollection = new InstanceParameterCollection();
				creationData.ParameterCollection.Add(parameter1);

				creationData.RuleName = "StartingRule";

				//Start a workflow by typing its name in the text box
				InstanceCreationResultData results = WorkflowService.CreateWorkflowInstance(this.uxWorkflowName.Text, creationData);

				//The following is optional and used for information gathering
				string instanceId = results.instanceId;
				string fault = results.fault!= null ? results.fault.Detail : string.Empty;
		            }
}
...

Available Operations

CreateWorkflowInstance: This operation will start a workflow based on the information specified in the InstanceCreationData object, however, the WorkflowName parameter will be ignored. This operation takes the workflow name as a separate parameter.

QueueWorkflowInstance: Queues the workflow instance instead of creating it synchronously during the call to the Workflow Web Service. The QueueWorkflowInstance operation is similar to the Workflow Subscriber.

Note: Since the workflow instance will not be started immediately, some information about the instance, such as the instance ID, will not be returned.

Available Objects

InstanceCreationData:

• Initiator: The user set as having initiated the workflow.
• WorkflowName: This object is reserved for future versions.
• Origin: The machine responsible for starting the workflow. Used in diagnostic messages.
• Originator: The source of the workflow starting command. Used in diagnostic messages.
• InstanceCreationFlag: This object is reserved for future versions.
• ParamaterCollection: A collection of parameters (InstanceParameterData objects) passed to the workflow.
• formData: Used by Laserfiche Forms.
• ExtensionData: This object is reserved for future versions.
• RuleName: The name of the rule that Workflow will report as starting the workflow. This does not need to be the name of a real starting rule.
• StartingEntry: The starting entry the workflow instance will use.
• TimeStamp: This object is reserved for future versions.

InstanceParameterData: The following types can be passed as parameters: bool, char, byte, short, ushort, int, uint, long, ulong, float, double, decimal, string, Guid, DateTime, and TimeSpan.

Note: Arrays (and most built-in collections) of these types can also be passed.

• Name: Name of the parameter being passed to Workflow.
• Value: Value for the parameter specified by InstanceParameterData.Name.

InstanceCreationResultData: This object defines information that can be returned by the workflow instance, such as error messages.

• fault: Failure message, if any.
• instanceId: The workflow instance ID.

InstanceUserData:

• InitiatorDisplayName: The workflow initiator’s display name.
• InitiatorName: The workflow initiator’s account name.
• IntiatorSID: The security identifier of the workflow initiator.
• Email: The initiator’s e-mail address.

InstanceEntryData:
