Loaded Assemblies Node

This node, under Advanced Diagnostics in the Workflow Administration Console, provides a list of all of the assemblies that the Workflow Server has loaded. This node displays the name, version, company, and copyright for the loaded assemblies.

Optionally, you can view the assemblies' file versions, assembly qualified names, locations, sizes, framework versions, and the dates they were created and last modified.

To open this node

  1. In the Workflow Administration Console's Console Pane, expand the Advanced Diagnostics node.

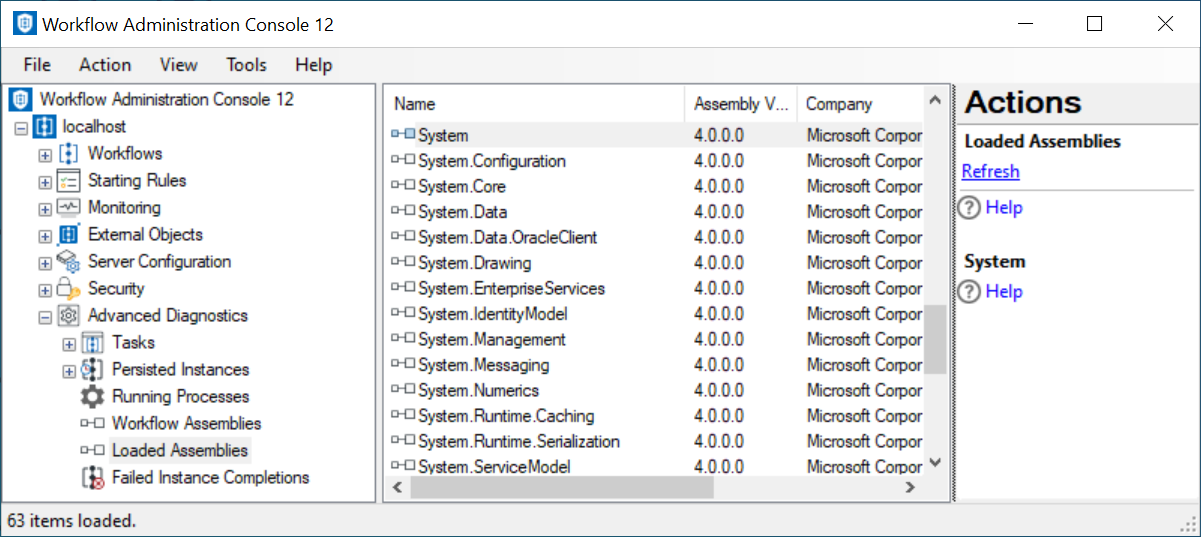

  2. Select Loaded Assemblies. The node will list all the assemblies that the Workflow Server has loaded.

    3. Tip: You can refresh this list to reflect recent changes by clicking the Refresh link below Loaded Assemblies in the Actions Pane. Alternatively, right-click the Loaded Assemblies node and select Refresh.

To export the contents of this node in a .csv, .xml, or .txt file

  1. Select the node in the Console Pane.
  2. Select View from the main menu.
  3. Click Export Contents.
  4. In the Export data dialog box, name the exported file.
  5. Select CSV File, XML File, or Tab Delimited Text File from the drop-down menu.
  6. Click Save.
