Assign Tags

This activity adds or removes tags to or from a Laserfiche entry.

How does this activity look in the Designer Pane?

To add this activity to a workflow definition

• Drag it from the Toolbox Pane and drop it in the Designer Pane.

To configure this activity

Select the activity in the Designer Pane to configure the following property boxes in the Properties Pane.

See the following options:

• Activity Name

  Once added to a workflow definition, the default name of an activity can be changed. Providing a custom name for an activity helps you remember the role it plays.

  To name an activity

  1. Add an activity to your workflow by dragging it from the Toolbox Pane and dropping it in the Designer Pane.
  2. Select the activity in the Designer Pane.
  3. Under Activity Name in the Properties Pane, replace the default name.



  Note: Activity names cannot be the same as any other activity name in the workflow, they cannot be the same as the workflow's name, they must be less than 100 characters, they must contain at least one alphanumeric character, they cannot be "Name," and they cannot be the same as the activity's runtime type (which is usually only an issue with custom activities).

• Activity Description

  Use the Activity Description to provide descriptive text to help you remember the role that the activity plays in the workflow. All activities contain a default description that you can modify while constructing your workflow.

  To modify an activity description

  1. Add an activity to your workflow by dragging it from the Toolbox Pane and dropping it in the Designer Pane.
  2. Select the activity in the Designer Pane.
  3. Under Activity Description in the Properties Pane, replace the default description.



• Assign/Remove Tags

  The Assign/Remove Tags property box determines how the activity assigns or removes tags to or from a Laserfiche entry.



  To configure Assign/Remove Tags

  1. Add the Assign Tags activity to your workflow definition by dragging it from the Toolbox Pane and dropping it in the Designer Pane.
  2. Select the activity in the Designer Pane.

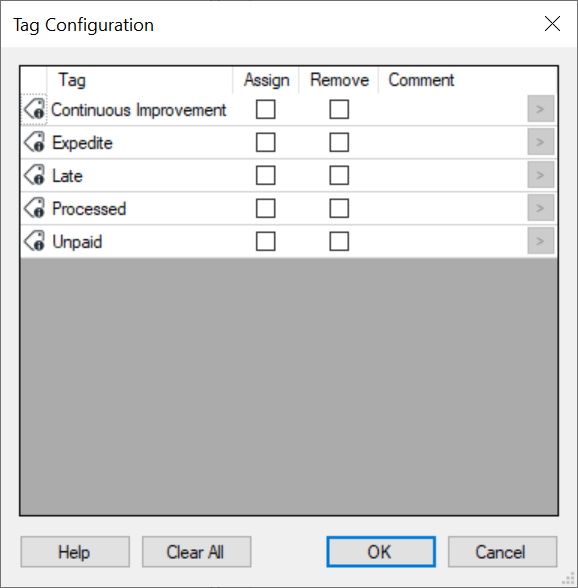

  3. In the Properties Pane, click anywhere in the Assign/Remove Tags property box to open the Tag Configuration dialog box.



  4. Select tags to assign and/or remove.
  5. Optional: Add comments to tags that are being assigned.
• Assign Tags To

  To select which entry or entries an activity will act on

  1. Add the activity to your workflow by dragging it from the Toolbox Pane and dropping it in the Designer Pane.
  2. Select the activity in the Designer Pane.
  3. In the Properties Pane, in the appropriate property box, choose which entry the activity will act on.
  • Starting Entry: The entry the workflow began with.
  • Other Entry: To choose an entry that was returned or created in a previous step in the current workflow, click the Select link and choose an entry from the Select Entry dialog box.

  Note: Some activities do not have the starting entry selected by default. If you are configuring one of these activities, click the Select link to choose an entry for the activity to act on.

Note: If you have more than one connection profile for your workflow definition, the Connection Profile property box lets you specify which connection profile this activity will use.
